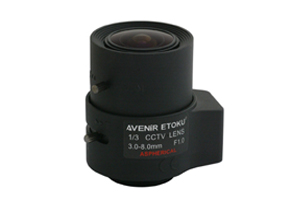

zoomSSV0308GNB
Glass aspherical lens corresponding infrared
SSV0308GNB
Interface
CS-
Focal length
3.0-8mm
Aperture range
F1.0-360
- details
- parameters
- drawings
- document
Model
SSV0308GNB
Specification
1/3 "
Interface
CS-
Focal length
3.0-8mm
Aperture range
F1.0-360
FOV
(Horizontal × vertical)
1/3 "
Wide
96 º × 70 º
Tele
34 º × 26 º
1/4 "
Wide
70 º × 52 º
Tele
26 º × 19 º
Operation
Zoom
Manual (locking mechanism)
Focus
Manual (locking mechanism)
Aperture
DC Auto
Minimum object distance (MOD)
0.3m ~ ∞
Back Focus (in air)
Wide
7.83mm
Tele
13.90mm
Effective lens aperture
Front
20.4mm
Rear
10.8mm
Operating Temperature
-10 ℃ ~ +50 ℃
Weight
55g
