zoomSSV0550GNB

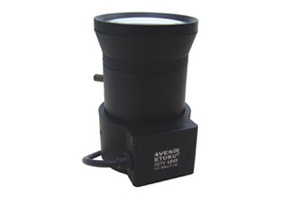

Auto Iris Lens
SSV0550GNB
Focal length
5.0-50mm
Aperture range
F1.45-360
Iris control mode
Auto Iris DC Drive
- details
- parameters
- drawings
- document
Model
SSV0550GNB
Image size
1/3 "
Focal length
5.0-50mm
Aperture range
F1.45-360
Iris control mode
Auto Iris DC Drive
Focus control mode
Manually
Zoom control
Manually
Angle (D × H × V)
1/3 inch
Wide
54.2 ° × 40.4 °
Tele
5.6 ° × 4.2 °
Minimum object distance
0.3m
Back Focus
10.9-11.4mm
Interface Type
CS
Dimension (D × L)
Φ45.6 × 50.2 × 69.9
