Version of Sony's FCB E Series Color integrated camera module provides excellent picture quality, excellent flexibility, ease, from traffic surveillance video communication environment to a variety of applications can easily support for secondary development and design. This series of camera module has been specially designed and developed to be integrated installed in the dome / bolt, mobile police cars, automatic photo booth, video booth and amblyopia instrument.

FCB CX E version of the product family includes five cameras components.

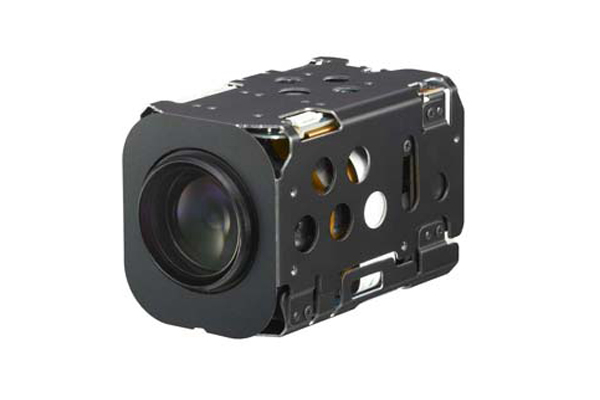

FCB-CX985E / P is equipped with a 28 x optical zoom lens.

FCB-CX985E / P uses a Super HAD CCD II imager and 28 times the lens (f = 1.35), sensitivity up 0.25lx (F1.35, 50IRE)

Feature

(A) camera assemblies are equipped with a newly developed f = 1.35 28 times Intelligent Lens. This lens has a fast zoom capability (from the remote to the wide-angle end to 2.5 seconds), and the performance is stable and durable.

(2) support progressive scan technology

(3) with digital output interface

(4) a variety of operating modes

(5) Support Enhanced Digital noise reduction function

(6) support image stabilizer function

(7) High resolution up to 550 TV lines

(8) support advanced white balance mode

(9) Support-5oC to 60oC operating temperature range

(10) support the temperature reading function

(11) supports a slow AE response function

(12) Support Color Enhancements

(13) extend C and D versions of the features supported

FCB-CX985EP

Image Sensor: 1/4 inch Super HAD CCD II

Effective pixels: 440,000 pixels (PAL) interlaced

Lens: 28 times zoom lens, f = 3.5mm (wide end) to 98.0mm (remote) F1.35 to F3.7

Digital zoom: 12 times

Horizontal viewing angle: 55.8o (wide end) to 2.1o (remote)

Minimum illumination: 0.25lx (F1.35, 50IRE)
