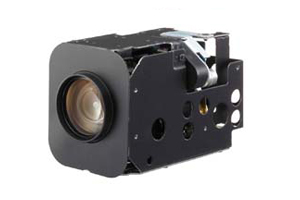

Sony launched a series of Chinese Model Color integrated camera module, making the FCB CX series product range is more abundant. Each of the products are made of 1/4 inch EXview HAD ™ CCD. With these advanced technologies and high-quality imaging devices, camera module can capture 530 TV lines of high resolution image, the picture clarity of detail is amazing. FCB CX Color integrated camera module family growing, the user can according to their needs, in 36 times, 26 times and 18 times the function select different product models meet their monitoring needs.

Moreover, these camera module also comes with advanced backlight compensation function, compared with the traditional camera module, which supports 128-fold dynamic range design and development, to restore the true image of high contrast environments. Supports secondary development required slow AE response function allows the camera module changing illumination conditions, even in the case, the same can capture a clear image, with this feature, FCB-CX product family capable variety of application conditions. Moreover, these camera module also supports the need for secondary development of some new convenient features, such as privacy masking function ball machine, video motion is detected function, multi-line character display and so on.

In addition, it has inherited many of the original product FCB series required secondary development function, such as electronic flip, image freeze, auto infrared filter mode (AUTO ICR) and so on. Excellent image quality combined with support for a variety of secondary development required a unique and convenient features, Chinese models FCB CX series camera module is the one machine, ball machine, PTZ cameras, indoor and outdoor security and traffic monitoring applications, the most Jia module solutions.

Feature

1/4 inch EXview HAD ™ CCD

High horizontal resolution of 530 TV lines

432 times zoom ratio (26x optical, 12x digital)

Wide dynamic function *

Advanced privacy masking function *

Video motion is detected function *

Minimum illumination: 1.0Lx (typical), 1/60 sec shutter speed 0.09Lx (typical), 1/4 sec shutter speed

Multi-line subtitle display function *

E-flip function *

Auto Infrared filter mode (ICR) *

Image freeze function *

Camera module for external devices control interface *

Electronic Shutter / Slow Shutter *

High-speed digital serial ports (up to 38.4Kb / s), with TTL signal-level control (VISCA protocol) *

Internal / external synchronization *

Secondary development marked * are required
