zoomDS-6647S/297H

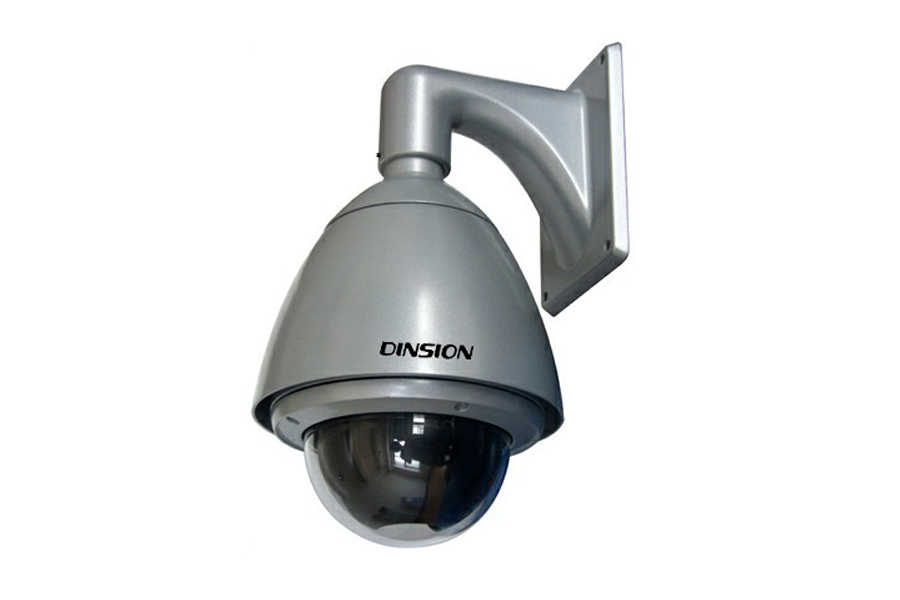

Speed ball machine
DS-6647S/297H
128 preset positions free storage, positioning accuracy
Six cruise lines, each can be set to 16 presets, preset adjustable dwell time
Features a complete high-performance digital DSP design, stable performance
Internal set of data is not lost after power failure
Horizontal 360 ° continuous rotation, no surveillance blind spots
Vertical 180 ° auto flip to achieve continuous monitoring, 0 ° to 90 °, no blind spot
- details
- parameters

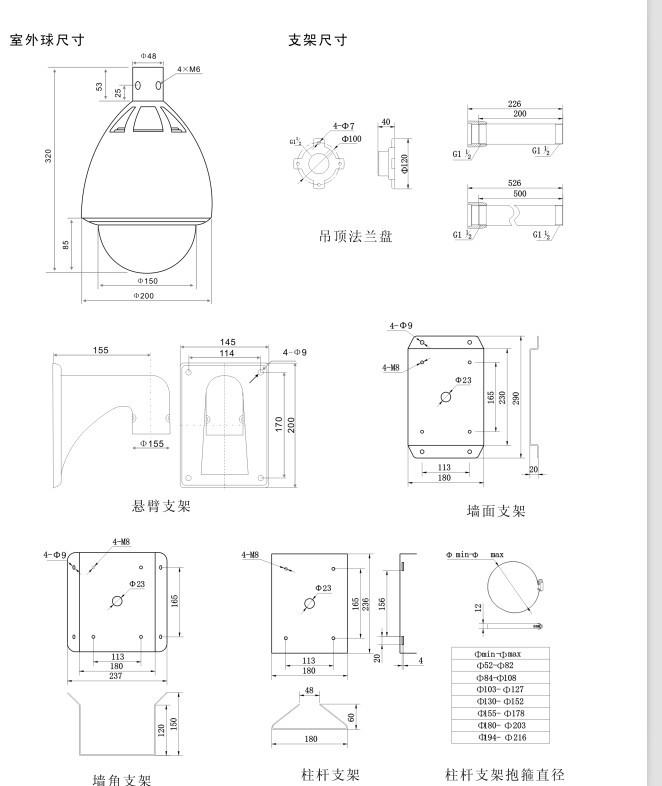

- drawings
- document
First, the camera performance characteristics
-1 / 4 SONY E xView CCD clarity 650VL
Zoom magnification: 30x optical
- Automatic tracking white balance, auto gain.
Focal length f = 3.9 ~ 92.5mm
- Dual filter day / night: automatic switch / interlock switch
-850 Nm infrared transmittance ≥ 75% super
- Minimum illumination: Color 0.2 LUX (normal), black and white 0.01 LUX (real-time)
- SNR ≥ 52DB
- High Speed Shutter - Auto / 1/50-1/10, 000SEC
- Mirroring: Support level
- Backlight compensation: (NO / OFF)
- Automatic Gain AGC: (0-15) adjustable amplitude
- 2D Digital Noise Reduction: On / Off
Second, the performance characteristics of the ball machine
128 preset positions free storage, positioning accuracy
Six cruise lines, each can be set to 16 presets, preset adjustable dwell time
Features a complete high-performance digital DSP design, stable performance
Internal set of data is not lost after power failure
Horizontal 360 ° continuous rotation, no surveillance blind spots
Vertical 180 ° auto flip to achieve continuous monitoring, 0 ° to 90 °, no blind spot
Level keying speed: 0.01 ° ~ 200 ° / s, vertical keying speed: 0.01 ° ~ 150 ° / s
Maximum preset speed: 250 ° / s
Night vision function: according to ambient light changes automatically converted CCD illumination
Rpm spin speed: automatically adjusted according to zoom multiples
Aluminum shell, 6-inch transparent dome, black opaque sphere
Base, ball core, transparent cover split structure
Embedded, indoor / outdoor hanging installation
Built-in surge and lightning protection devices
Input voltage :18-30VAC, 24VAC standard
Input power: 60W outdoor heated
Fuse: 1.6A resettable
Operating Temperature: Indoor: 0 ℃ to 60 ℃ continuous operation
Outdoor: -40 ℃ to 65 ℃ continuous work
IP66 rated, CE, FCC standards
