zoomDS-947Z/297H

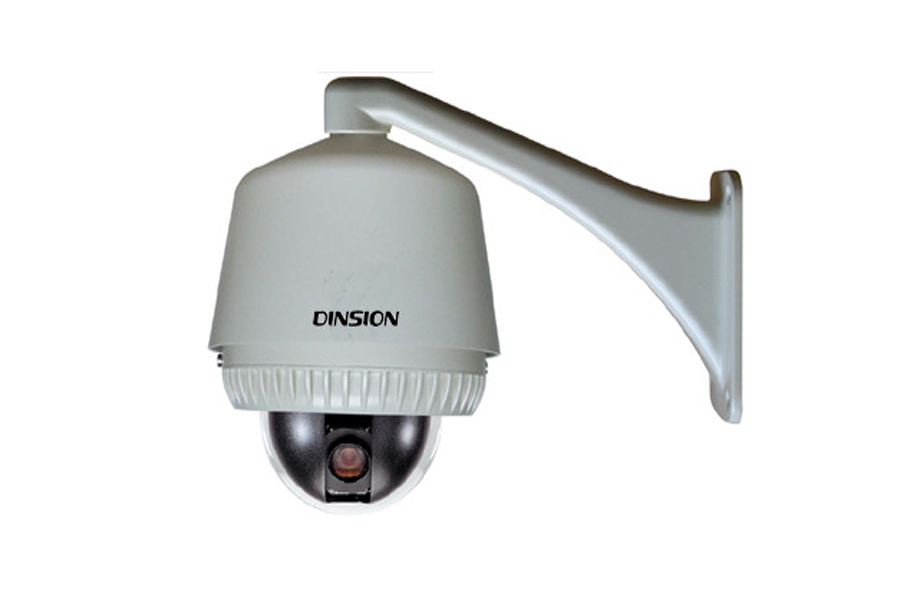

Speed ball machine
DS-947Z/297H
8 privacy, confidentiality zone automatic tracking hidden functions
4 pattern scan, each can record 5-500 minutes
6 automatic cruise function, each cruise line can be set 18 presets, preset dwell time can be set
Support alarm linkage, 6-channel alarm input, 2 alarm output
Variety of automatic scan mode, scan speed can be set through the built-in menu
No operation can enter a variety of operating modes: guard position, auto scan, pattern scan, auto cruise, idle time is 3 seconds -100 minutes
- details
- parameters

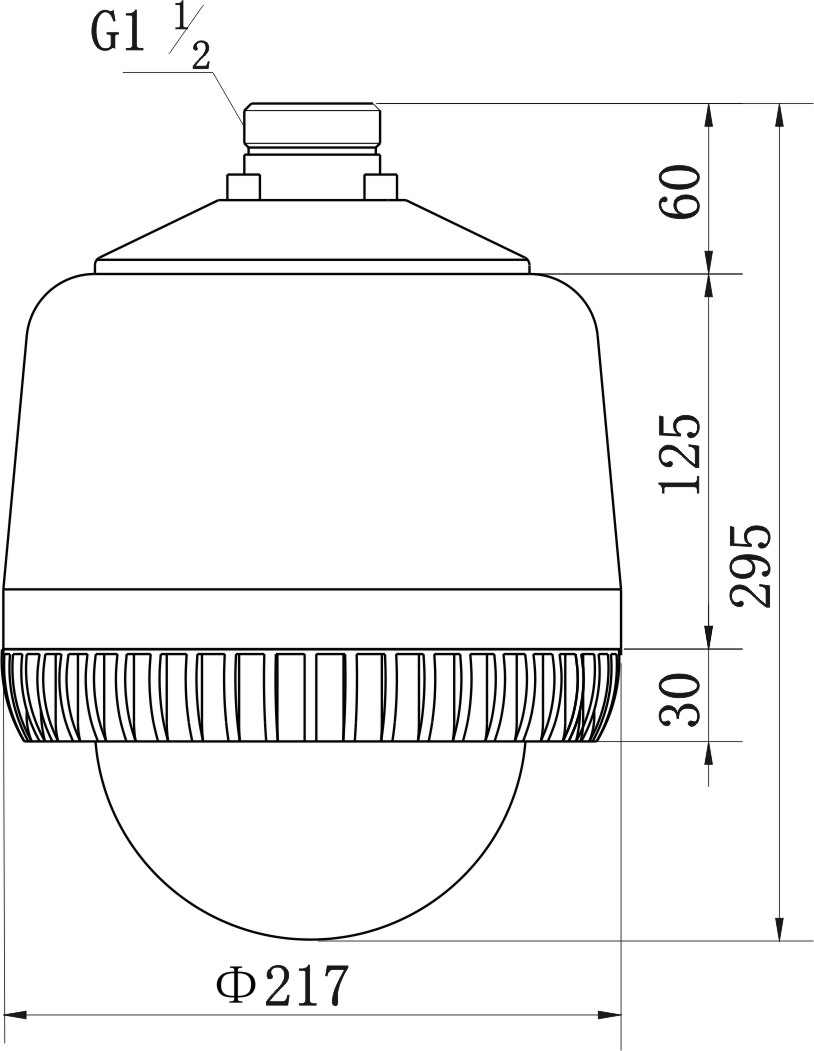

- drawings
- document
First, the camera performance characteristics
-1 / 4 SONY E xView CCD clarity 650VL
Zoom magnification: 30x optical
- With power and memory function
- Automatic tracking white balance, auto gain.
Focal length f = 3.9 ~ 92.5mm
- Dual filter day / night: automatic switch / interlock switch
-850 Nm infrared transmittance ≥ 75% super
- Minimum illumination: Color 0.2 LUX (normal), black and white 0.01 LUX (real-time)
- SNR ≥ 52DB
- High Speed Shutter - Auto / 1/50-1/10, 000SEC
- Mirroring: Support level
- Backlight compensation: (NO / OFF) / HLC (HSBLC)
- Automatic Gain AGC: (0-15) adjustable amplitude
-2D Digital Noise Reduction: On / Off
Second, the performance characteristics of the ball machine
● Chinese-screen menu display (export ball machine for the English screen menu)
● 8 channel timing action
● three-dimensional positioning enlarge
● Temperature, coordinates, time display
● English title editing, support for Pinyin input method
● fault information detection
● Idle Action
● a variety of manual control level can be set
● Support power down before the action
● 256 preset positions
● Support soft soft address and baud rate
The major products
A, shield structure
Aluminum shell, 6-inch transparent dome, black opaque sphere
Base, ball core, transparent cover split structure
Embedded, indoor / outdoor hanging installation
IP66 rated, CE, FCC standards
Built-in surge and lightning protection devices
Cooling and temperature control device
Second, the ball core
8 privacy, confidentiality zone automatic tracking hidden functions
4 pattern scan, each can record 5-500 minutes
6 automatic cruise function, each cruise line can be set 18 presets, preset dwell time can be set
Support alarm linkage, 6-channel alarm input, 2 alarm output
Variety of automatic scan mode, scan speed can be set through the built-in menu
No operation can enter a variety of operating modes: guard position, auto scan, pattern scan, auto cruise, idle time is 3 seconds -100 minutes
Wide speed, ball machine speed increases as the camera zoom slows
Boot display control protocol, address code and baud rate, on-screen menu
High quality stepping motor, differential drive, smooth, jitter, noise
Shortcut keys and modify the function call
With camera information display switch
Soft address modification function
Basic performance
360 ° continuous rotation, maximum speed 400 ° / sec
Vertical -2 ° to 93 °, 180 ° auto flip, maximum speed 400 ° / sec
256 preset positions can be set, the preset accuracy of less than 0.05 °
RS-485 bus control, PELCO P / D control protocol, baud rate 2400/4800/9600 optional
Automatic power-off information protection
Electrical Specifications
Input voltage :18-30VAC, 24VAC standard
Input power: Indoor 18W, 72W outdoor heated
Fuse: 1.6A resettable
Operating Temperature
Indoor: 0 ℃ to 60 ℃ continuous operation
Outdoor: up to 60 ℃ continuous operation; lowest intermittent operation -50 ℃, -45 ℃ continuous operation; antifreeze state -40 ℃ continuous operation, the power is turned on within 3 hours after thawing ice 2.5mm
