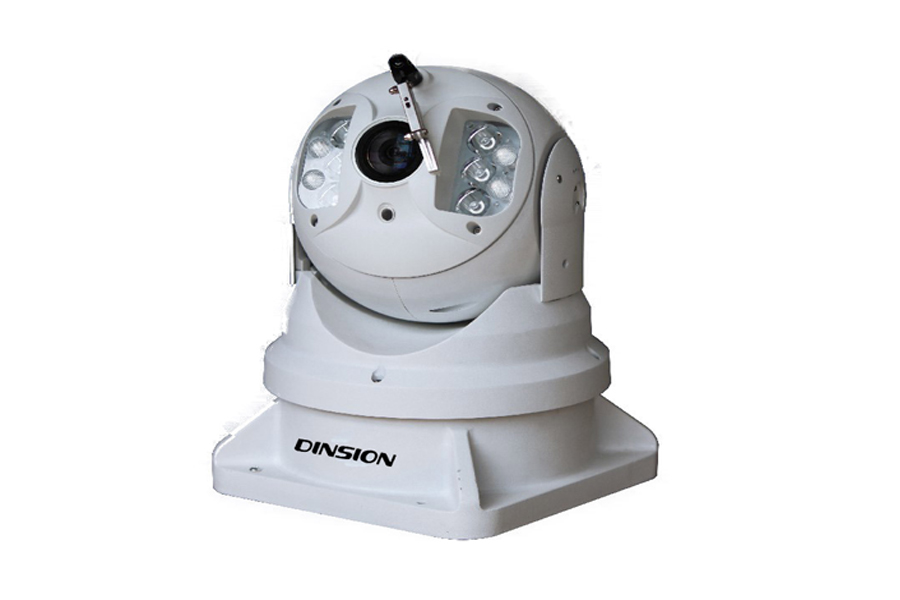

zoomDS-760S-36N
Full car camera
DS-760S-36N
● Minimum Illumination 0Lux, IR arrays with efficient, low-power, irradiation distance of up to 150 meters
● infrared light with magnification distance matching algorithm, according to magnification and adjust the infrared light from the brightness of the image to achieve the desired state
● Built-in high-heat treatment device to reduce the dome chamber temperature to prevent the ball inside shield fogging
● Constant current circuit design, infrared lamp life of 50,000 hours
Shield structure
● High-strength aluminum alloy die casting shell whole, all-metal structure inside
- details
- parameters

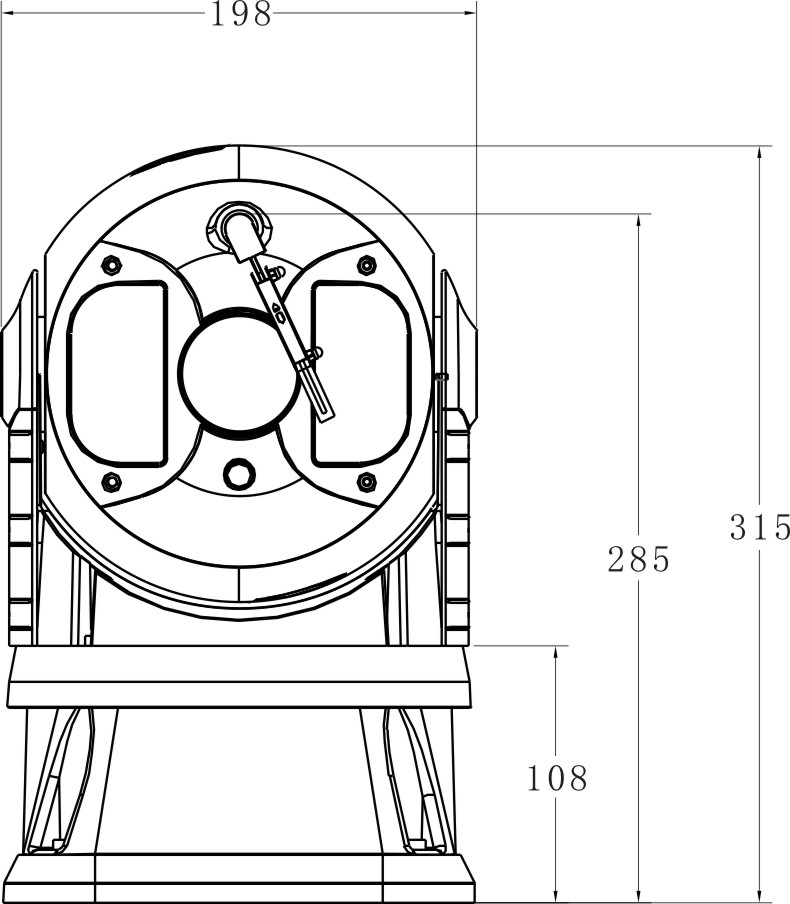

- drawings
- document
First, the camera performance characteristics
Image Sensor: 1/4 inch EXview HAD CCD (Progressive Scan)
Effective pixels: 440,000 pixels (PAL)
Lens: 36x zoom, f = 3.4mm (wide end) to 122.4mm (remote) F1.6 to F4.5
Digital zoom: 12x Horizontal Viewing Angle: 57.8o (wide end) to 1.7o (remote)
Horizontal resolution: 550 TV lines
Minimum illumination: 1.4lx (F1.6, 50IRE)
Support progressive scan technology
Equipped with a digital output interface
Multiple operating modes
Supports enhanced digital noise reduction function
Support for new technologies WDR function: Auto Wide dynamic, progressive and interlaced modes WDR wide dynamic mode
Support image stabilizer function
High resolution up to 550 TV lines
Support advanced white balance mode
Support-5oC to 60oC operating temperature range
Support the temperature reading function
Support Slow AE response function
Support for color enhancement
Second, the performance characteristics of the ball machine
● Minimum Illumination 0Lux, IR arrays with efficient, low-power, irradiation distance of up to 150 meters
● infrared light with magnification distance matching algorithm, according to magnification and adjust the infrared light from the brightness of the image to achieve the desired state
● Built-in high-heat treatment device to reduce the dome chamber temperature to prevent the ball inside shield fogging
● Constant current circuit design, infrared lamp life of 50,000 hours
Shield structure
● High-strength aluminum alloy die casting shell whole, all-metal structure inside
● super thermal design, impact, corrosion, protection grade IP67, support underwater work
● camera and infrared light isolated to avoid infrared light halo and heat on the impact of cameras and image
System Functions
● Support multi-language menu and operation prompts, user-friendly interface
Wiper cleaning function
● wiper function optional
● Support for three-dimensional intelligent positioning function, with the DVR and client software enables click-tracking and amplification
● Support power off memory function after power off before the monitor automatically return to the position before the power failure or perform monitoring tasks
● idle action, no operation can enter a variety of operating modes: guard position, auto scan, pattern scan, auto cruise
● Supports Power movement, the ball machine, performs scheduled monitoring tasks
● broadcast addresses, simultaneously support multiple billiard machines use the same address, uniform change information and monitoring tasks
● Support soft address, soft Agreement soft baud rate, change the front-end back-end parameters
● Temperature, coordinates, time display
● English title editing, support for Pinyin input method
● fault information detection
Dimensional intelligent positioning: Support
Menu display: Chinese, English
Information Display: PTZ name, preset name, time, temperature, angle, status, etc.
Keying Maximum speed: 120 ° / s
Manual speed: 0.5 ° ~ 120 ° / s, a variety of manual control level can be set
Horizontal rotation range: 360 ° continuous rotation
Vertical manual speed: 0.5 ° ~ 120 ° / s, a variety of manual control level can be set
Tilt range: -25 ° ~ 55 °
Zoom ratio: Support
Preset number of points: 255
Cruising Scan: 6, each preset can be added 18 points, dwell time can be set
Pattern Scan: 4, each path recording time 5-500 minutes
About scanning: 1
Auto Pan: 360 ° can be set
Idle time: 3 seconds -100 minutes can be set
Timing Action: Preset / Pattern / Cruise Scan / Auto Scan / Frame Scan
Power Action: Power down front position / power down before the action preset / pattern scan / cruise Scan / Auto Scan / Frame Scan
Power and memory: Support
Azimuth information is displayed: Support
IR distance: 150 meters
Infrared angle: According to a variable focal length
Alarm output: 2
Alarm: preset, pattern scan, cruise, auto-scan, frame scan, the trigger switch output
