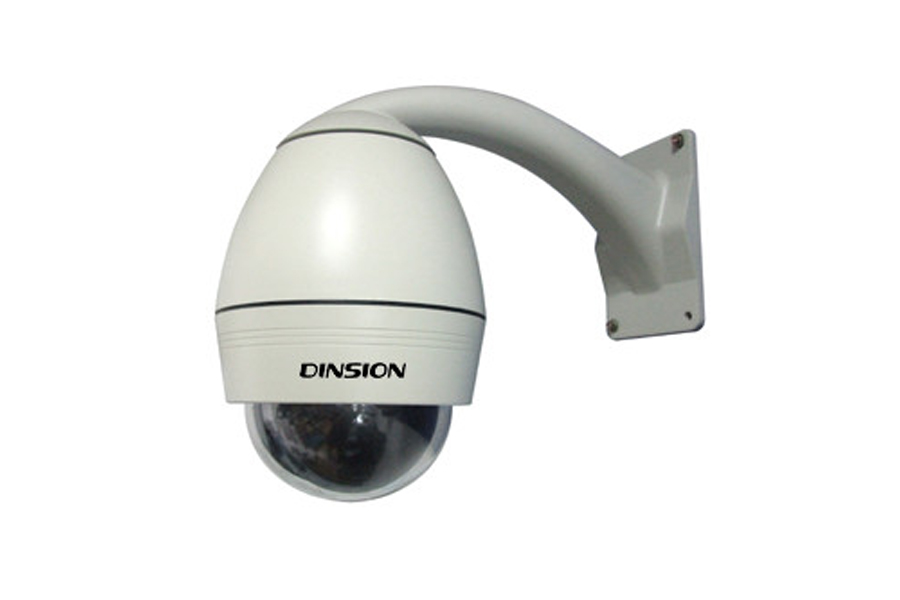

zoomDS-620S/26T
Intelligent Tracking High Speed Dome Camera
DS-620S/26T
● Chinese-screen menu display
● 8 channel timing action
● three-dimensional positioning enlarge
● idle action, no operation can enter a variety of operating modes: guard position, auto scan, pattern scan, auto cruise
● Power-on action
● broadcast address
● soft address, soft Agreement soft baud
- details
- parameters

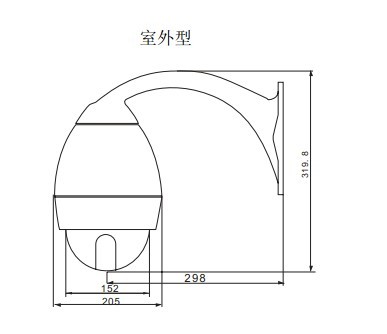

- drawings
- document
First, the camera performance characteristics
-1 / 3 SONY E xView CCD clarity 720VL
- Zoom magnification: 26x optical 12x digital zoom
- Built-in English menu
- With power and memory function
- Light suppression, 2D Noise Reduction
- Automatic tracking white balance, auto gain.
- Lens: 1/3 inch 26 optical zoom lens F = 1.4
- Focal Length f = 4.0 ~ 92MM
- Dual filter day / night: automatic switch / interlock switch
-850 Nm infrared transmittance ≥ 88% super
- Minimum illumination: Color 0.2 LUX (normal), black and white 0.01 LUX (real-time)
- SNR ≥ 52DB
- Slow shutter speeds - slow shutter MAX X256
- Mirroring: Support level
- Backlight compensation: (NO / OFF) / HLC (HSBLC)
- Automatic Gain AGC: (0-15) adjustable amplitude
- White balance settings: Auto / Auto Tracking / Indoor / Outdoor / Manual Mode
-2D Digital Noise Reduction: On / Off
Second, the performance characteristics of the ball machine
● Chinese-screen menu display
● 8 channel timing action
● three-dimensional positioning enlarge
● idle action, no operation can enter a variety of operating modes: guard position, auto scan, pattern scan, auto cruise
● Power-on action
● broadcast address
● soft address, soft Agreement soft baud
● Temperature, coordinates, time display
● English title editing, support for Pinyin input method
● fault information detection
The major products
A, shield structure
Aluminum shell, 6-inch transparent dome, black opaque sphere
Base, ball core, transparent cover split structure
Indoor / outdoor hanging installation
IP66 rated, CE, FCC standards
Built-in surge and lightning protection devices
Comes with temperature control device
Second, the ball core
8 privacy, confidentiality zone automatic tracking hidden functions
4 pattern scan, each can record 5-500 minutes learning path
6 automatic cruise function, each cruise line can be set 18 presets, preset adjustable dwell time
Variety of automatic scan mode, scan speed can be set through the built-in menu
Wide speed, ball machine speed increases as the camera zoom slows
High quality stepping motor, differential drive, smooth, jitter, noise
Shortcut keys and modify the function call
Guard position, auto scan, pattern scan, auto cruise, idle time is 3 seconds -100 minutes wide speed limit
Ball machine speed increases as the camera zoom slow boot display control protocol, address code and baud rate
On-screen menu of high-quality stepping motor, differential drive, smooth, jitter, noise shortcut keys and modify the function call
Alarm
Tracking function: (optional) manually lock tracking, automatic tracking, regional tracking, intelligence analysis, intelligent cruise, tracking alarm
6 alarm inputs, 2 alarm output a variety of automatic scan mode, scan speed can be set through the built-in menu
No operation can enter a variety of operating modes
Basic performance
360 ° continuous rotation, maximum speed 400 ° / sec
Vertical -2 ° to 93 °, 180 ° auto flip, or 0 ° -180 ° optional, maximum speed 400 ° / sec
256 preset positions can be set, the preset accuracy of less than 0.05 °
RS-485 bus control, PELCO P / D control protocol, baud rate 2400/4800/9600 optional
Automatic power-off information protection
