zoomDS-5627S-297H

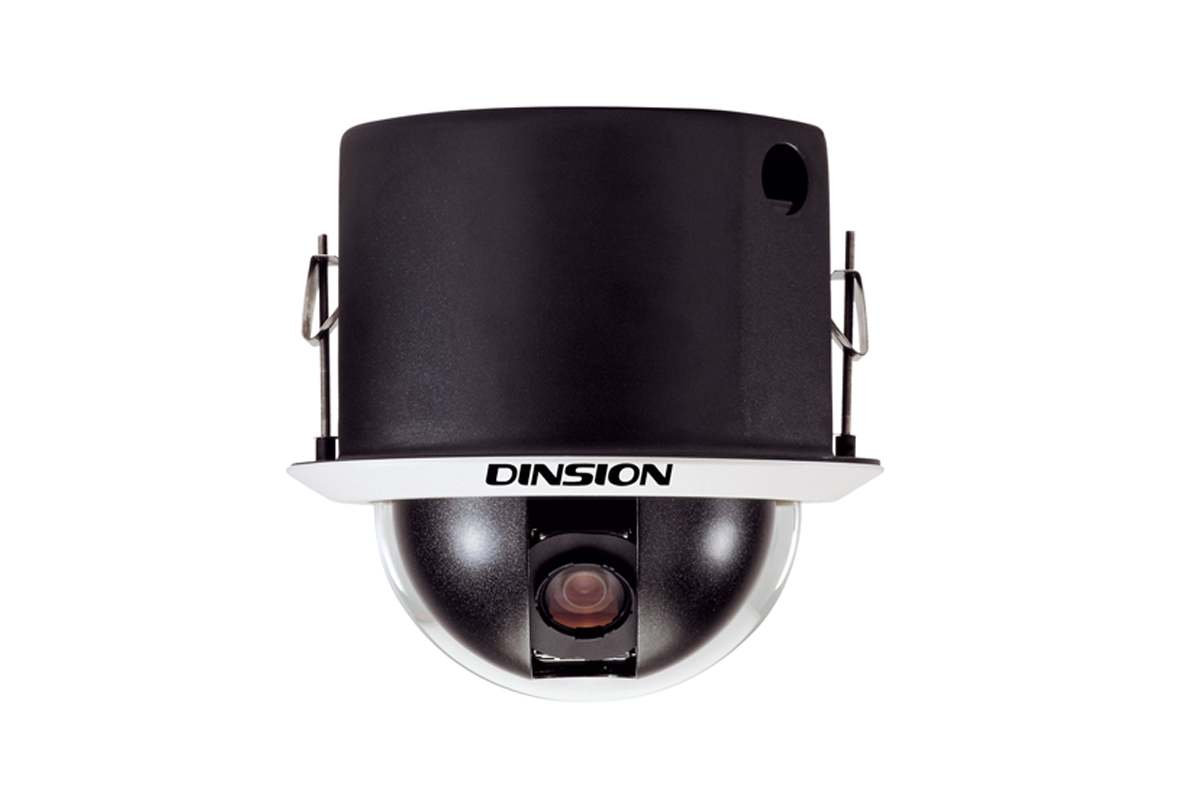

Embedded high-speed ball machine
DS-5627S-297H
5 "optical materials transparent dome
Features a complete high-performance digital DSP design, stable performance
Internal set of data is not lost after power failure
Using RS-485 or W code Bus Control
128 preset positions free storage, positioning accuracy
Overshoot sensitive, accurate screen
- details
- parameters
- drawings
- document
First, the camera performance characteristics
-1 / 4 SONY E xView CCD clarity 650VL
Zoom magnification: 30x optical
- Automatic tracking white balance, auto gain.
Focal length f = 3.9 ~ 92.5mm
- Dual filter day / night: automatic switch / interlock switch
-850 Nm infrared transmittance ≥ 75% super
- Minimum illumination: Color 0.2 LUX (normal), black and white 0.01 LUX (real-time)
- SNR ≥ 52DB
- High Speed Shutter - Auto / 1/50-1/10, 000SEC
- Mirroring: Support level
- Backlight compensation: (NO / OFF)
- Automatic Gain AGC: (0-15) adjustable amplitude
Second, the performance characteristics of the ball machine
5 "optical materials transparent dome
Features a complete high-performance digital DSP design, stable performance
Internal set of data is not lost after power failure
Using RS-485 or W code Bus Control
128 preset positions free storage, positioning accuracy
Overshoot sensitive, accurate screen
6 preset cruise lines, each cruise line can be 16 presets, preset adjustable dwell time
Horizontal 360 ° continuous rotation, no surveillance blind spots
Vertical 180 ° auto flip to achieve continuous monitoring, -3 ° to 93 ° no surveillance blind spots
Night vision function, according to changes in ambient light illumination automatically converted CCD
Auto iris, auto focus, auto white balance
Rpm spin speed is automatically adjusted according to zoom multiples
Backlight compensation function, in a strong light, you can see all the objects in the environment
Precision motor drive, smooth, responsive
Integrated design, compact structure, high reliability
Manual speed: horizontal 0.05 ° -250 ° / s, vertical 0.05 ° -200 ° / sec
Preset speed level of 250 ° / s, vertical 250 ° / sec.
Meet and pass the Chinese Ministry of Public Security IP66FCC CE testing standards
