zoomDS-790Z/86T
Integration of intelligent tracking speed ball machine
DS-790Z/86T
Unique, patented design, the use of symmetrical double bearing, high strength and balance
Snap structure, quick and easy installation
Rapid cooling of the all-metal design, with wiper function
Matching algorithm, using infrared light and the focal length distance light design
The protruding camera and isolation and infrared light to avoid infrared light halo and fever camera and image
Weather environmental design, in the night without lighting conditions can quickly capture the target, night vision distance of 150 meters
- details
- parameters
- drawings
- document
Camera performance characteristics
-1 / 3 SONY E xView CCD definition 720VL
- Zoom magnification: 26x optical 12x digital zoom
- Built-in Chinese and English menu
- With power and memory function
- Light suppression, 2D noise reduction
- Automatic tracking white balance, automatic gain.
- Lens: 1/3 inch optical zoom lens F = 1.4
- Focal Length f = 4.0 ~ 92mm
- Dual filter day / night: automatic switching / link switch
The -850 nm infrared super transmittance ≥ 88%
- Minimum illumination: Color 0.2 lux (normal), black and white 0.01 LUX (real-time)
- Signal-to-noise ratio ≥ 52dB
- Slow shutter speeds - slow shutter MAX X256
- Mirror: Support level
- Backlight compensation: (NO / OFF) / light inhibition (HSBLC)
- Automatic gain AGC: (0-15) adjustable amplitude
- White balance settings: Auto / Auto Tracking / Indoor / Outdoor / Manual mode
-2D Digital Noise Reduction: On / Off
Ball machine performance characteristics
● overall high-strength aluminum alloy shell with internal metal structure
Efficient thermal design, impact resistance, anti-corrosion, protection class IP66.
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
● 360 ° continuous rotation, the maximum speed of 200 ° / sec
● -3 ° to 93 ° vertical, 180 ° auto flip, maximum speed 150 ° / sec.
● 256 preset positions can be set, the preset accuracy of less than 0.05 °
● 6 automatic cruise function, each cruise line can be set to 18 preset points, the residence time of preset point adjustable
● RS-485 bus control Pelco P / D control protocol, baud rate 2400/4800/9600 optional
● automatic power-off protection
Level range: 0 ° ~ 360 ° continuous rotation
Vertical range: -2 ° to 93 ° (with auto-flip function)
Horizontal speed: 0.05 ° - 150 ° / s
Vertical speed: 0.05 ° - 125 ° / s
Maximum speed: 200 ° / S (tune preset speed)
Preset: 256
Cruise Scan: 6 (each can be set to 18 preset positions, dwell time is adjustable)
Pattern: 4 (each can record 5-500 minutes)
The left and right scan: 1
Frame scan: a
The timing action: preset / Pattern / Cruise Scan / Auto Scan / Frame Scan
Power-up actions: position before power down / power down before the action / preset / the pattern scan / cruise Scan / Auto Scan / Frame Scan
Idle: preset / pattern scanning / cruise Scan / Auto Scan / Frame Scan (idle time adjustable from 3-100 minutes)
Wide-angle speed limit: focal length / speed automatic matching
Tracking functions: (optional) manually lock tracking, automatic tracking, regional tracking, intelligent analysis, intelligent cruise, tracking alarm
Alarm output: 2-way (switch output)
Alarm: presets, pattern scan, cruise scan, the left and right scan, frame scan trigger the alarm output
Analog video output: 1.0Vpp/75Ω BNC interface
Control: R485 Bus
Control Protocol: Pelco P / D, Samsung, Dahua, Hai Kang
Baud Rate: 2400/4800/9600BPS
IR distance: 150 meters
Power: 18 ~ 30VAC, standard AC 24V/3A
Power consumption: 60W (with heating device)
Working environment: temperature -40 to 60 ° C; humidity <90%
Protection class: IP66, 3000V lightning protection, anti-surge and anti-surge protection

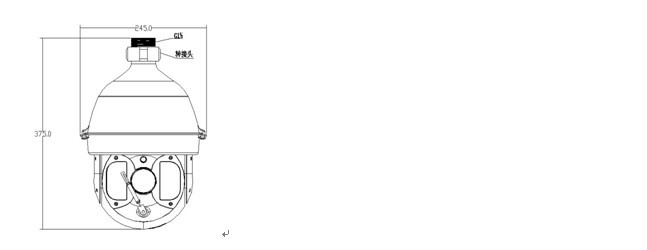

Product size: Φ245 (mm) × 345 (mm)
Weight: 5kg
