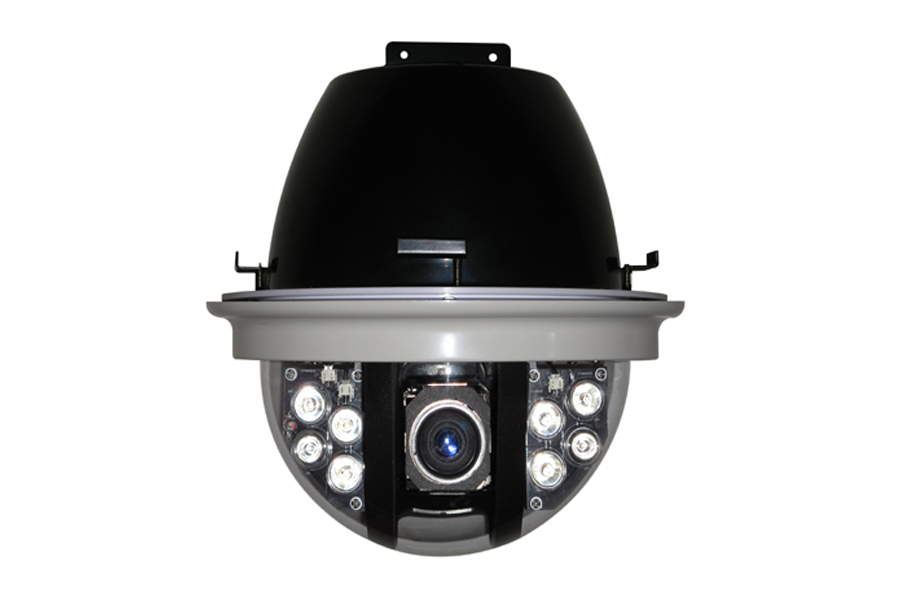

zoomDS-7207S/297H
Embedded intelligent night vision infrared ball
DS-7207S/297H
The horizontal swivel range 360 ° infinite bit
Horizontal rotation speed of 0.5 ° / S - 30 ° / S
The vertical swivel range of 90 ° (180 ° auto flip)
Vertical rotation speed of 0.5 ° / S - 6 ° / S
Communication mode RS485
Pre-set number of points 128
- details
- parameters
- drawings
- document
First, the camera performance characteristics
-1 / 4 SONY E xView CCD definition 650VL
Zoom magnification: 30x optical zoom
- With power and memory function
- Automatic tracking white balance, automatic gain.
Focal length f = 3.9 ~ 92.5mm
- Dual filter day / night: automatic switching / link switch
The -850 nm infrared super transmittance ≥ 75%
- Minimum illumination: Color 0.2 lux (normal), black and white 0.01 LUX (real-time)
- Signal-to-noise ratio ≥ 52dB
- High-speed shutter - Auto / 1/50-1/10, 000SEC
- Mirror: Support level
- Backlight compensation: (NO / OFF) / light inhibition (HSBLC)
- Automatic gain AGC: (0-15) adjustable amplitude
-2D Digital Noise Reduction: On / Off
Second, the ball machine performance characteristics
The horizontal swivel range 360 ° infinite bit
Horizontal rotation speed of 0.5 ° / S - 30 ° / S
The vertical swivel range of 90 ° (180 ° auto flip)
Vertical rotation speed of 0.5 ° / S - 6 ° / S
Communication mode RS485
Pre-set number of points 128
Cruise track 6 default cruise track, a pattern tracks
Horizontal scanning trajectory two 360 ° horizontal scan trajectory, two level limit scanning track
Communication baud rate 1200/2400/4800/96
00 BPS
Input voltage DC 12V
IR LED: 24
Cover material: Aluminum the optical transparent cover: Acrylic

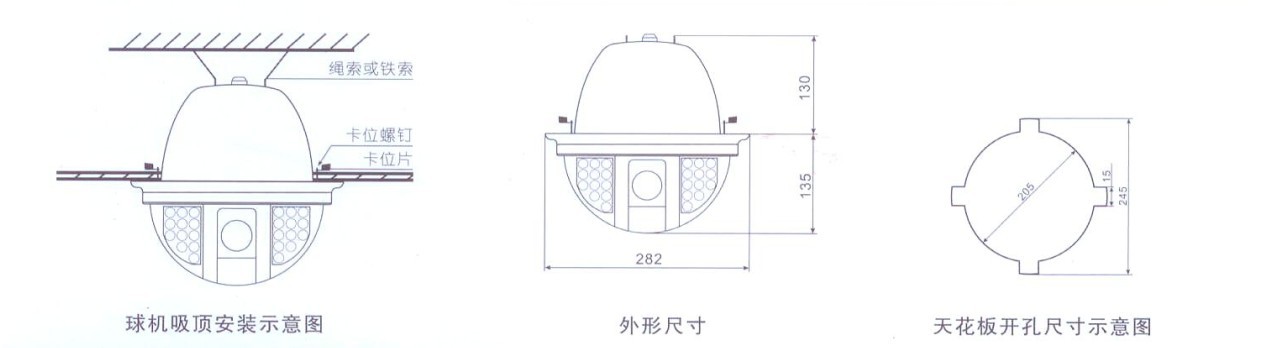

Largest camera plus lens size 130 × 65 × 70 mm
The Ceiling Heights ceiling hole size Φ205 mm
Ceiling PTZ minimum embedding a height of 130 mm
Night vision distance of 80 meters
