zoomDS-720S/26T
The infrared synchronization integration of high-speed ball machine
DS-720S/26T
Infrared light and camera zoom synchronization can be adjusted from 60 degrees to 2 degrees
● High-strength aluminum alloy overall die-cast housing, internal all-metal structure, base, ball core, transparent cover split structure
Multifunctional protective cover with double shade, heat insulation design, impact, corrosion, protection grade IP66
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
Weather environmental design in the night without lighting conditions can quickly capture the target
- details
- parameters

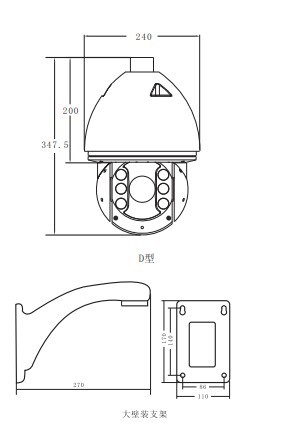

- drawings
- document
Camera performance characteristics
-1 / 3 SONY E xView CCD definition 700VL
- Zoom magnification: 26x optical
- With power and memory function
- Light suppression, 2D noise reduction
- Automatic tracking white balance, automatic gain.
- Focal Length f = 3.6 - 97.2MM
- Dual filter day / night: automatic switching / link switch
-850 Nm infrared transmittance ≥ 89% super
- Minimum illumination: Color 0.2 lux (normal), black and white 0.02 LUX (real-time)
- Signal-to-noise ratio ≥ 52dB
- High-speed shutter - Auto / 1/50-1/10, 000SEC
- Mirror: Support level
- Backlight compensation: (NO / OFF) / light inhibition (HSBLC)
- Automatic gain AGC: (0-15) adjustable amplitude
- White balance settings: Auto / Auto Tracking / Indoor / Outdoor / Manual mode
-2D Digital Noise Reduction: On / Off
Ball machine performance characteristics
Infrared light and camera zoom synchronization can be adjusted from 60 degrees to 2 degrees
● High-strength aluminum alloy overall die-cast housing, internal all-metal structure, base, ball core, transparent cover split structure
Multifunctional protective cover with double shade, heat insulation design, impact, corrosion, protection grade IP66
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
Infrared night vision function, infrared light can be automatically opened according to the day / night, can also be manually opened, 120 meters IR distance, can work continuously for more than 5 years.
● Horizontal 360 ° continuous rotation, the maximum speed of 200 ° / sec.
● Vertical -3 ° -93 ° rotation, 180 ° Auto Flip, or 0 ° -180 ° optional, maximum speed of 200 ° / sec.
● 128 preset positions, preset accuracy of less than 0.05 °
6 Road cruise scan, each cruise line can be set 18 preset preset adjustable dwell time.
● RS-485 bus control Pelco P / D control protocol, baud rate 2400/4800/9600 optional
● Operating temperature -30 ° C - +65 ° C.
● automatic power-off protection
● Input Voltage Range AC18V-27V.
● Power 30W.
