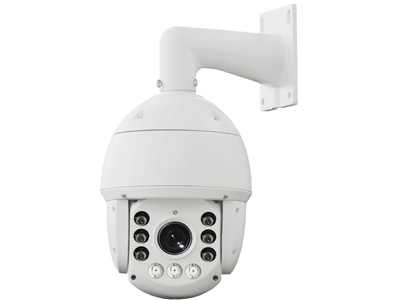

zoomDS-5106S/611D
Night vision smart ball machine
DS-5106S/611D
● overall high-strength aluminum alloy die-casting shell, metal structure
Efficient thermal design, impact resistance, anti-corrosion, protection class IP66.
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
● Rotation range: Horizontal 360 ° continuous rotation, vertical -5 to 92 ° (support auto-flip, to ensure the continuity of the monitor)
● preset maximum speed of 40 ° / s
- details
- parameters
- drawings
- document
Camera performance characteristics
1/4 SONY E xView CCD definition 650VL
Zoom magnification: 30x optical zoom
- With power and memory function
- Automatic tracking white balance, automatic gain.
Focal length f = 3.9 ~ 92.5mm
- Dual filter day / night: automatic switching / link switch
The -850 nm infrared super transmittance ≥ 75%
- Minimum illumination: Color 0.2 lux (normal), black and white 0.01 LUX (real-time)
- Signal-to-noise ratio ≥ 52dB
- High-speed shutter - Auto / 1/50-1/10, 000SEC
- Mirror: Support level
Backlight compensation: (NO / OFF)
- Automatic gain AGC: (0-15) adjustable amplitude
- White balance settings: Auto / Auto Tracking / Indoor / Outdoor / Manual mode
-2D Digital Noise Reduction: On / Off
Ball machine performance characteristics
● overall high-strength aluminum alloy die-casting shell, metal structure
Efficient thermal design, impact resistance, anti-corrosion, protection class IP66.
Weather environmental design in the night without lighting conditions can quickly capture the target
● Built-in surge and lightning protection devices
● Rotation range: Horizontal 360 ° continuous rotation, vertical -5 to 92 ° (support auto-flip, to ensure the continuity of the monitor)
● preset maximum speed of 40 ° / s
● the level of keying speed of 0.5 ° ~ 35 ° / s, the the vertical keying speed of 0.5 ° to 35 ° / s
● 255 preset points, data power and memory
● Support 8 cruising scan, each can be added 16 preset points
● Support for multiple pattern scan, total recording time greater than 10 minutes
● Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
● Optional built-in high-precision RTC clock support 8 timing task
● support watchmen,
● Night vision distance: 100 meters
● Power DC12V ± 10%
