Basic parameters

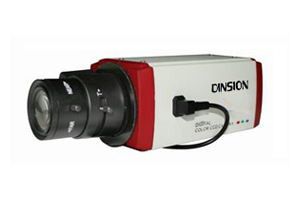

DS-689CH wide dynamic camera with 1/3 "Sony Super HAD (Hi-Res) CCD image sensor up to 600 resolution can clearly stable images; Automatic tracking white balance, backlight compensation, and other powerful features automatic switching day and night ; the series cameras for road traffic violations, government, corporate, indoor, outdoor and other environments. ◆ effective Pixels: NTSC: 768 × 494 PAL: 752 × 582 ◆ high resolution: 600 TVLines (color)

Minimum illumination: 0.5 Lux F1.2 (color)

0.001 Lux F1.2 (W)

  0 Lux (IR LED ON)

◆ Built-in OSD menu, multi-language optional

◆ 2D digital noise reduction technology

◆ The shutter speed is adjustable, with HSBLC

◆ ATR wide dynamic technology environment for backlighting

◆ zone privacy masking, motion detection and other functions

◆ automatic white balance, manual white balance, auto tracking white balance ATW

◆ Working temperature: -10 ℃ ~ 85 ℃

◆ DC 12V power input
