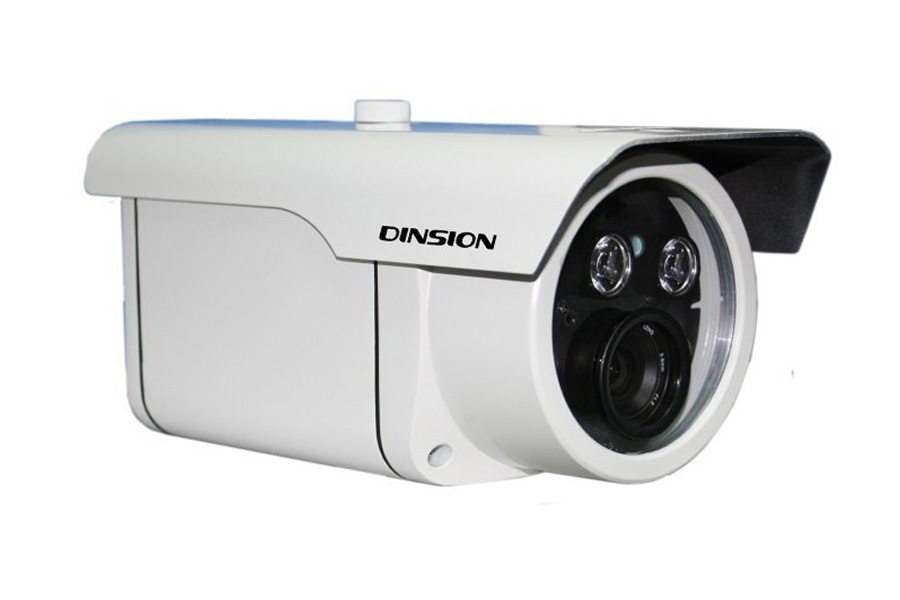

zoomDS-203A
Infrared cameras
DS-203A
Image Sensor: 1/3 "SONY Super HAD CCD
Sensing Area 4.9mm × 3.7mm
Signal System: PAL / NTSC
Horizontal resolution: 720 TV lines
- details
- parameters

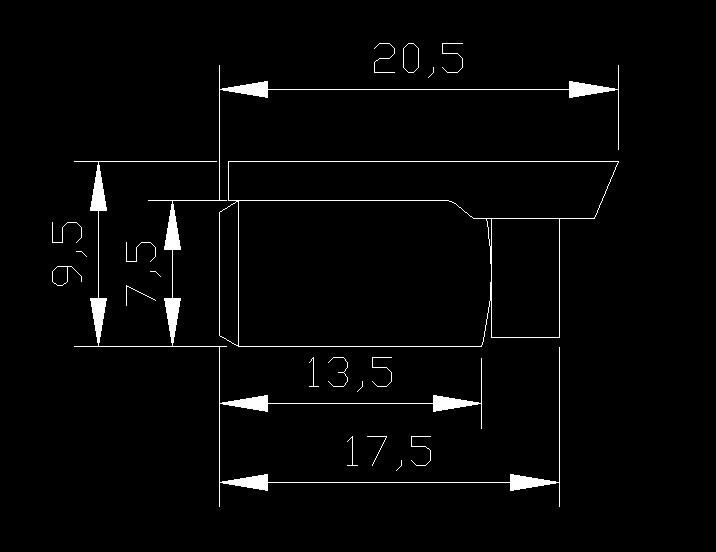

- drawings
- document
Basic parameters
Image Sensor: 1/3 "SONY Super HAD CCD
Sensing Area 4.9mm × 3.7mm
Signal System: PAL / NTSC
Horizontal resolution: 720 TV lines
Lens Standard: 8mm (6mm .12 mm .16 mm) Optional
Shutter speed: 1/50 (1/60) ~ 1/100.000 sec.
SNR: more than 48dB (AGC OFF)
White Balance: Auto Tracking White Balance
Minimum Illumination: 0 LUX (IR ON)
Video output: 1.0Mp-p75Ω (BNC)
Power consumption: Infrared light is turned on, maximum current 800mA
IR LED quantity: Φ8 × 35pcs
Infrared wavelength: 850nm
Infrared lamp irradiation distance: 70m
Jack: Video Out (BNC)
Power requirements: DC 12V
