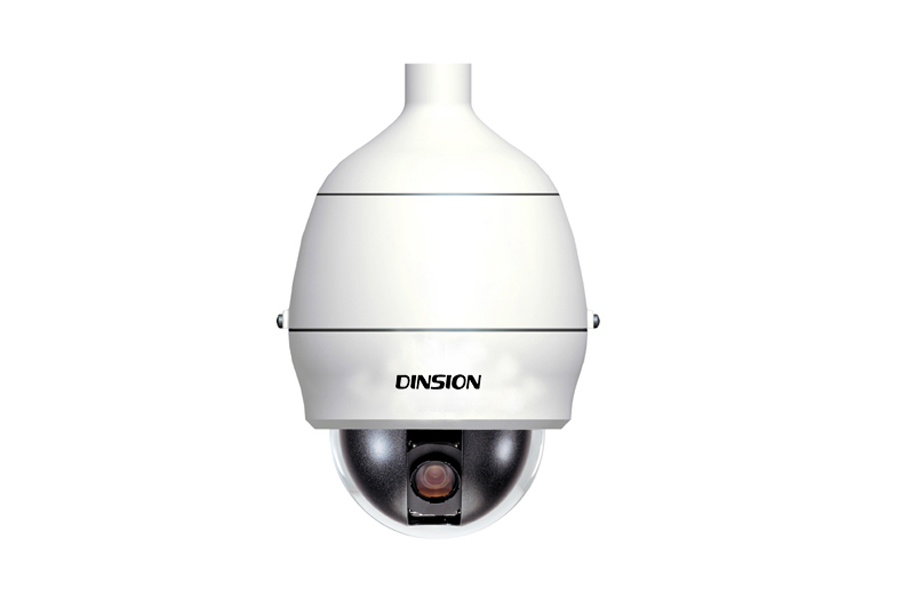

zoomDS-AR980
HD network dome camera
DS-AR980
● HDTV HD quality
HDTV performance. Support HD or 720P/25P +720 P/25P
Dual-stream format, resolution, aspect ratio of 16:9, the ability to
Full frame rate output H.264 Main Profile level and M-JPEG video streams.
● Zoom and Auto Focus
With a 18x optical zoom, 10x digital zoom and auto focus more features
Can provide the desired field of view, but also can achieve the perfect autofocus.
- details
- parameters

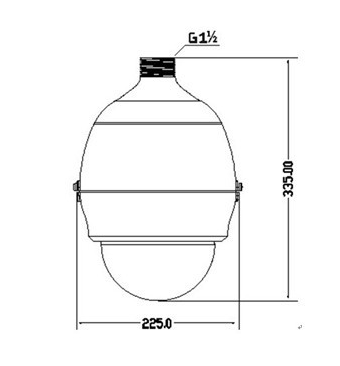

- drawings
- document
Features
● HDTV HD quality
HDTV performance. Support HD or 720P/25P +720 P/25P
Dual-stream format, resolution, aspect ratio of 16:9, the ability to
Full frame rate output H.264 Main Profile level and M-JPEG video streams.
● Zoom and Auto Focus
With a 18x optical zoom, 10x digital zoom and auto focus more features
Can provide the desired field of view, but also can achieve the perfect autofocus.
● low stream high-resolution
Provide excellent low stream performance, 2Mbps bit stream compression 720P/25P video
Resolution can reach 727 TV lines; 1.3MP/25P at 4Mbps video bit stream compression,
Resolution up to 800 TV lines.
Lens; f4.7-84.6 mm, F1.6-2.8 ICR ICR Day & Night Dual AF Closest focusing distance: 10mm (wide angle), 800mm (Tele) Horizontal viewing angle: 3.2 ° - 55.2 ° Minimum illumination; color: 0.2 Lux @ 30IRE, F1.6 W: 0.01 Lux @ 30IRE, F1.6
Zoom; 18x optical zoom, 20x digital zoom, total 360x zoom
Highest resolution; SXGA (1280x1024), 30fps
HD/720p (1280x720, 30fps) + FullD1 (720x480, 30fps)
720P (H.264) +720 P (MJPEG) PAL / NTSC
Horizontal resolution;> 800TVL (1280x1024 pixels)
> 700TVL (1280x720 pixels)
Dual-stream; HD/720p (1280x720, 30fps) + Full D1 (720x480, 30fps) or 720P (H.264) +720 P (MJPEG)
Supported protocols; IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ICMP, ARP, SOCKS
Security; password protection, multi-user access control
Application program interface; supports software integration API, including SDK and VMP video management center platform
Network Interface; RJ45 10Base-T/100Base-TX PoE (IEEE802.3af)
Power: 24v3A
