The bank is part of the focus of national security units. It has diversity, scale and range of important facilities, the complexity of the access to personnel, and management areas, as today's social currency circulation spaces, an important part of the operation of the national economy, its business involves a lot of cash, securities and valuables. The concentration of wealth, strong liquidity making it against the main objective of some extreme malicious criminals. Therefore, we must establish a set of effective security monitoring systems, monitoring of each business area.



Vanguard Security has a full range of products suitable for video surveillance of banks, demand for bank security features to provide users with solutions, is committed to first-class brand, technology and services to bank customers, Bank security.



The bank security monitoring system:







     Bank video surveillance system monitoring area is divided into the business hall / outlets, buffet line / ATM, vault, office area. The front of the operating room / outlets, buffet line / ATM and the vault of the local monitoring video image and alarm information uploaded to the monitoring center of branches, and local storage; branch monitoring center unified video signal for each monitoring point, alarm, intercom unified planning and scheduling request signal, access control, etc., in accordance with the permissions set for each region to implement different management, centralized storage of important image data and configuration information; Branch of the control center at all levels Branch monitoring center assign permissions from the branches The monitoring center "streaming" Get real-time streaming video from the front-end devices for playback of streaming video to be displayed on the terminal. Certain confidential place as the image of the treasury, to monitor the limit, only the designated person or department to view.

Vanguard Security Bank security monitoring system platform, modular design, easy to deploy, simple operation, long-term high performance and stability. Targeted development, according to the bank's own management requirements and monitor the status of fully reflects the efficiency of the monitoring and management. System combines digital image processing, image coding and decoding, distributed networks, image transmission, database, information management and other advanced technology, and help users achieve unified monitoring and integrated management of the branches, sub-branches, outlets, self-service banking, treasury and other operational agencies .

The overall design of the system

Bank security monitoring system shall be designed to be dependent on the network platform, including the network topology, bandwidth status, network type and network management, taking fully into account the characteristics of the system's internal organization.

Banking system alarm and monitoring system has a network form, is a network system and complete video information over a network using TCP / IP protocol, as well as some special strategies, alarm information transfer, distribution, storage, retrieval and management of central management center under the system health checks to ensure that the system is safe, reliable, stable operation. A provincial bank alarm and monitoring systems may be installed hundreds, thousands, or even tens of thousands of cameras, these cameras distributed form dispersed in various cities dispersed locations, these cameras and image information is not just something in a terminal, they will be "on demand" is assigned to the relevant departments located in different physical locations, which means that the image information is "circulation". We can not imagine relying solely on traditional analog video matrix network inefficiencies.

The video stream, the device must be of a reasonable management strategy as a digital video surveillance system. Ordinary TCP / IP protocol can not meet the complex multi-level management functions of the monitoring center, a large number of digital video networking needs.

Financial security monitoring system has the following characteristics:

System network science: the use of large-scale distributed system architecture, scientific and efficient data link;

Bandwidth control Flexibility: Support View priority setting, bandwidth priority to meet the high-level view;

(3) device docking Compatibility: open platform design, support for seamless access to a variety of products;

Alarm processing diversity: support a variety of alarm access mode, alarm action is diverse;

Retrieve positioning intuitive: to support the electronic map function, intuitive view device status and video information;

Equipment operation and maintenance intelligent: support for real-time monitoring of equipment operating status and fault information automatically upload

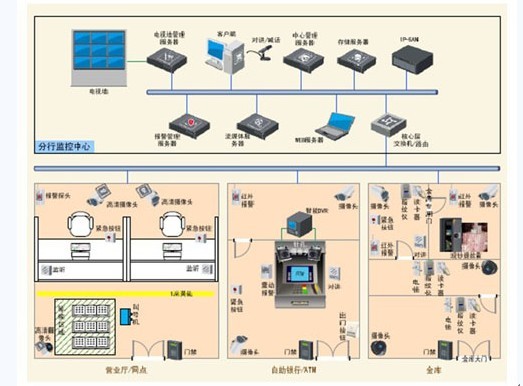

  Typical system topology Fig.

System detailed design:

, Business offices / outlets:

Every business counter the deployment of wide dynamic camera, real-time monitoring of each operating window and the teller, specification teller operations, improve the quality of banking services and service levels, disputes between banks and their customers to provide audio and video data; wide deployment in the hall dynamic camera, and the overall situation in the hall monitor to monitor staff suspicious behavior (such as loitering, stay, trailing, etc.); Inhibition light cameras deployed in the operating room door, out of and around the door for real-time monitoring. Video image uploads to the monitoring center, and for local storage.

For all types of emergencies to respond effectively to the operating room, the counter deployment manual alarm and glass break alarm devices, smoke, infrared sensor, siren, lights and alarm devices deployed in the hall, supports both manual and automatic alarm, the unity of all alarm signals uploaded to the monitoring center for centralized treatment, and automatically open the video recording, and trigger-site warning lights to deter criminals. Intercom devices deployed in the operating room can be launched by the Centre intercom to remind the teller, and also to initiate intercom reported to the center by the teller or on-site security personnel. Voice communication between the monitoring center and business hall.

Functions:

Can counter outlets of customer disputes and suspicious business image can be remote access to, and timely investigation of the cause of the things after, to improve the quality of banking services, an important video materials are available for remote download backup.

Packet preview settings can monitor screen can be classified query access to the business counter, hall panorama and lobby door, armored bit image, so as to facilitate the bank's day-to-day security and business checks.

Electronic map can be displayed in real time alarm points arming Figure, access to the alarm point real-time surveillance images, in order to achieve the visual management scheduling.

4 through centralized monitoring center alarm management, linkage alarm video screen output to the TV on the wall, also can be linked to the electronic map, intuitive display alarm point, and synchronize the contact details of the relevant security personnel and disposal plan, to facilitate the timely tracking processing of police intelligence.

Remote network monitoring center can on each network device system software remote upgrade and remote parameter settings, thus facilitating the day-to-day maintenance of the bank front-end network equipment to support remote school to ensure the synchronization of the monitor screen.

Second, the buffet line / ATM:

Each ATM machine installed on two pinhole cameras, a deposit / withdrawal face monitoring, historical image data for investigation after the incident, to assist in the identification. Another monitor interface out of money in dispute after the accident to provide effective image data. System adds intelligent analysis module to automatically identify the ATM machine such as malicious install the card reader, attach paper and other illegal activities. Clear room after the ATM machine deployment infrared camera to monitor the operation of the staff in the Qing room, to ensure proper operation. Wide dynamic camera in the deployment of self-service banking hall, and the overall situation in the hall monitor, monitoring the staff suspicious behavior (such as loitering, stay, trailing, stress, etc.); Inhibition light cameras deployed in front of the buffet line, and out and around the door to real-time monitoring. Video image uploads to the monitoring center, and for local storage. Deploy the alarm button, next to the ATM machine for customers to manual alarm in case of emergency; deploy the ATM machine vibration alarm device near the alarm, automatic alarm acts of vandalism beat ATM machine; deployment of smoke in the buffet line hall, infrared sensor, alarm, lights and other warning devices. Supports both manual and automatic alarm, and uploads all alarm signals to the monitoring center for centralized treatment, automatically open the video recording and trigger-site warning lights deter criminals. Deployment intercom voice communication between the monitoring center and the staff in the buffet line at the buffet line next to the ATM machine, can be initiated by the Centre intercom deter suspicious persons, customers may also be initiated intercom reported to the Center for help center to accept the request operating instructions through the intercom.

Functions:

A self-service banking / ATM monitoring screen transmitted over the network, centralized transmission to the monitoring center and displayed on the TV wall.

2 through intelligent analysis module, intelligent monitoring bank unattended self-service area, the behavior in the buffet line teller machines to install the card reader and paste ads automatically identify and automatic alarm.

Electronic map can be displayed in real time alarm points arming Figure, access to the alarm point real-time surveillance images, in order to achieve the visual management scheduling.

(4) through the monitoring center received the alarm information and centralized processing, on the banks of the buffet line outlets, from the line ATM unattended area alarm control and alarm output control, remote open the front of the alarm, warning light deter illegal destruction and illegal stay of personnel.

Through the remote monitoring center intercom, remote monitoring center and self-service banking propaganda and intercom. For remote voice guidance guest operating remote propaganda warning unlawful destruction and illegal stay staff.

6 monitoring center of the buffet area access control for remote switch control, when the illegal invasion, destruction of self-service equipment in emergency situations, the monitoring center can remotely shut down a front-end access control, the suspect in a self-service banking, 110 Alarming center the police to arrest the suspects.

7 monitoring center can remotely control the lights and air conditioning in self-service banking, power conservation, and ensure safety.

System alarm, access control, intercom and video linkage alarm video output to the TV on the wall for display, can also be linked with the electronic map. Support for video and alarm linkage, sound and light alarm, siren prompts and voice prompts. The system will automatically alarm information through E-MAIL and SMS to notify the relevant personnel.

Third, the treasury

According to the actual situation of the treasury in the front door and three-door foyer deploy gun-shaped cameras, dome cameras, dome cameras. In the special lighting conditions, can be used with a light suppression, wide dynamic, infrared night vision, high-definition monitor features a special camera models in real-time, three doors inside the vault, vault door, cash, cash machines and other critical areas monitoring. Real-time video signal uploaded to the monitoring center and do local storage, support for local video output. In addition, vault doors deployment infrared sensor, manual alarm button alarm device installed at the top of the room smoke alarm device, manual alarm and automatic alarm combination, a comprehensive response to all types of emergencies. The treasury staff need to send a request to the monitoring center, through visual voice intercom review, consent before they are allowed into the vault. By the Center initiated an internal intercom command to enter the vault or warning criminals of illegal entry into the vault, vault keep the library can also be initiated intercom reported to the treasury suspicious circumstances. Were deployed to strictly ensure the safety of the treasury, three-door access control settings outside the isolating valve within the isolating valve and vault door card reader, electric lock, exit button, a set of strict access control systems. Access by the monitoring center unified remote control, video, alarm systems can be linked.

Functions:

Can grouped preview settings on the monitor screen, classify and query access to the vaults, armored bit image support, so as to facilitate the bank's day-to-day security and business special inspection work.

Electronic map can be displayed in real time alarm points arming Figure, access to the alarm point real-time surveillance images, in order to achieve the visual management.

3 by centralized alarm monitoring center management, linkage alarm output of the video screen to the TV on the wall, also can be linked to the electronic map, intuitive display vault alarm point, and synchronize the contact details of the relevant security personnel and disposal plan, to facilitate the timely tracking the police intelligence.

Support the vault field staff and monitoring center voice intercom, treasury staff issued a call request, the call request information uploaded to the monitoring center, monitoring center agreed to the request, the voice can be achieved between the monitoring center and the staff , the video and sound synchronization review, strengthen the management of the bank vault.

IV Summary

Banks focus on the construction of the monitoring system, will provide users with an integrated video surveillance and alarm service management platform, the system has a network form, the formation of flexible, easy to manage and maintain, and integrated alarm systems, access control systems and other third-party systems linkage operation. Provide integrated management services for security, fire, day-to-day management, security and other aspects.
